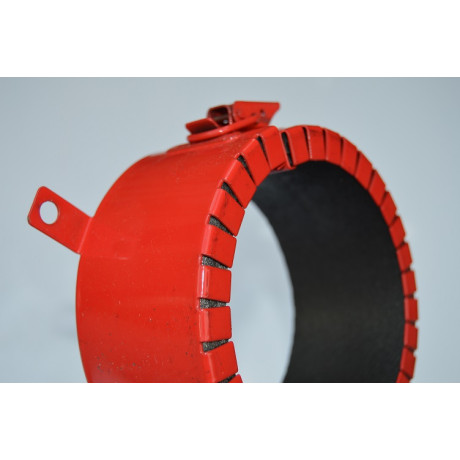

Fire Stopping Pipe Collar 4 hour - 110mm

Intumescent pipe collar 4 hour fire protection - for fire stopping all types of plastic pipes passing through fire compartment floors and walls. EN1366-3 For use on UPVC,ABS, MDPE, HDPE and PP pipes. NHBC Type Approval.

This item is sized 110mm, various other sizes are available - see our other listings for other size options from 32mm through to 250mm. We also have 2 hour collars and CE marked collars available.

Astoflame intumescent pipe collars are manufactured from a high performance material bonded to the inside of a steel sleeve. On exposure to heat from a fire they rapidly expand inwards to squeeze the collapsing plastic pipe until the aperture is completely sealed. Pipe collars are tested in accordance with the performance requirements of BS476: Part 20: 1987. The pipe collars are light and compact, easy to install, maintenance free and find uses in multi- storey office buildings, flat level developments, hospitals, high rise residential properties, tower blocks and hotels.

These collars can be surface mounted, cast or semi-cast in situ. Suitable for use and anywhere plastic soil and waste pipes pass through fire compartment walls and floors. We suggest any gap around the pipe is sealed with a proprietary fire stopping material, such as intumescent mastic, before the fire collar is installed.

FREE DELIVERY for 5 items or more, otherwise £3.60 to mainland UK only, for any enquiries please call 0843 8861545
